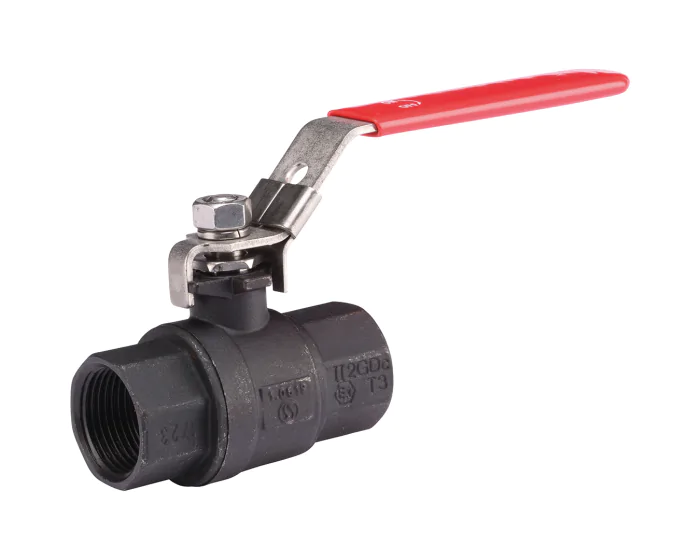

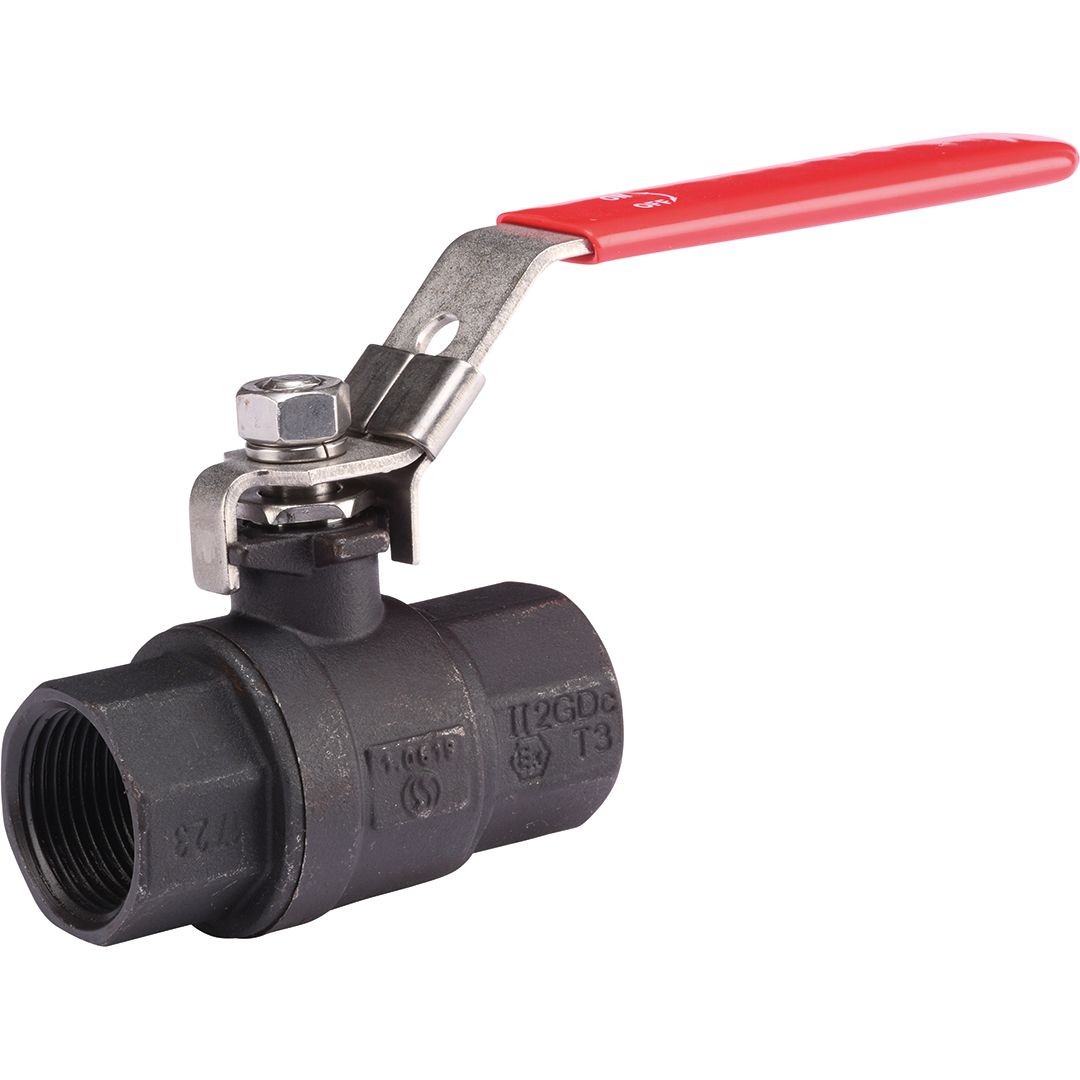

The Sferaco 705 series ball valve, 2-piece body, in carbon steel with DIN3202 M3 face to face, long thread BSP connection, for ATEX zones 1 & 21, 2 & 22, chemical, pharmaceutical and compressed air industries.
| Specification | Value |
|---|---|
| DN inches NPS | 1/4'' |
| Option certificate 3.1 | Yes |
| CE risk category | III Module H |
| EN face-to-face standard | EN 16722 M3 Series |
| DIN face-to-face standard | DIN 3202 M3 |
| Face to face standard | EN 16722 M3. DIN 3202 M3 |
| Thread standard | ISO 228-1 |
| Tightness test standard | ISO 5208. Rate A |
| Stem sealing material | PTFE gland packing |
| Antistatic device | Yes |
| Opening device | Handle |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Shaft/stem matérial | Stainless steel AISI 304 |
| Lockable | Yes |
| ATEX compatible | Yes |
| Torque (Nm) | 2 |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 50.0 |
| Fluid | Hot water / Cold water / Oil / Some acids |
| Body material | Carbon steel A216 WCB (1.0619) |
| Number of ways | 2 |
| Bore | Full |
| ISO pad 5211 | No |
| Packing gland | Yes |
| PS (bar) | 63 |
| Connections | BSP FF |
| Seats | PTFE |
| Ball material | Stainless steel ASTM A351 CF8M |
| TS max (°C) | 180 |
| TS min (°C) | -20 |
| Ball valve design | 2-piece body |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 2 years |
| CE | Yes |
| Main product colour | Black |
| Handle material | Stainless steel AISI 304 |
| Handle type | Red lever |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Carbon steel A216 WCB (1.0619) Full 2-piece body 1/4'' | 705002 | S1006412 |
€8.60
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 2-piece body 3/8'' | 705003 | S1006413 |
€8.60
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 2-piece body 1/2'' | 705004 | S1006414 |
€10.96
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 2-piece body 3/4'' | 705005 | S1006415 |
€12.99
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 2-piece body 1'' | 705006 | S1006416 |
€17.69
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 2-piece body 1''1/4 | 705007 | S1006417 |
€29.91
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 2-piece body 1''1/2 | 705008 | S1006418 |
€39.61
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 2-piece body 2'' | 705009 | S1006419 |
€59.80
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 2-piece body 2''1/2 | 705010 | S1006420 |
€151.61
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 2-piece body 3'' | 705011 | S1006421 |
€195.94
(excl. btw)
|
add to cart |
